Řada výrobků

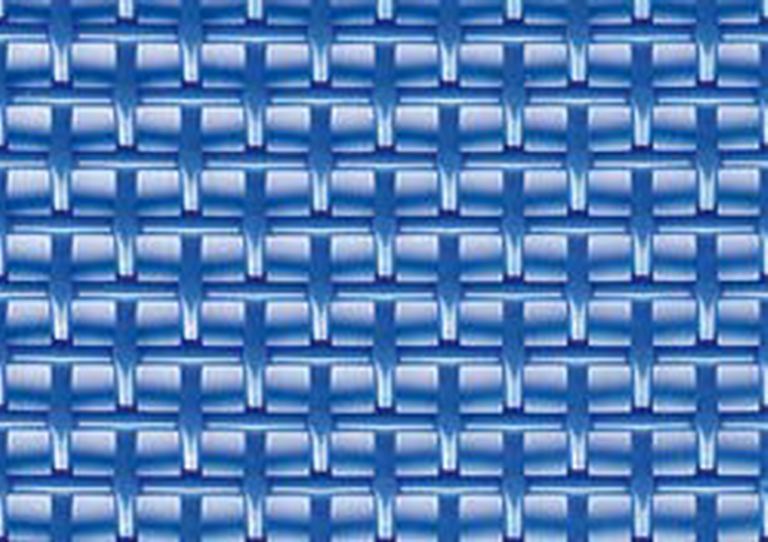

Ultrascreen 2000

• Velikost ok síťoviny 2000 μm
• Monofilament ze 100 % polyesteru
• Světle modrá barva
• Výstuhy PVC, Amtel TPE-E
• Propustnost vzduchu 5080 L/dm²/min při Δp=100 Pa
• Propustnost vody 700 až 2 060 mm/s*
• Otevřenost povrchu 30 až 60 %*
• Splňuje potravinářské standardy ES 1935/2004, FDA
• Vlastnosti pásu určují finální zhotovení
• K dispozici recyklovatelná verze

* V závislosti na velikosti ok sítoviny

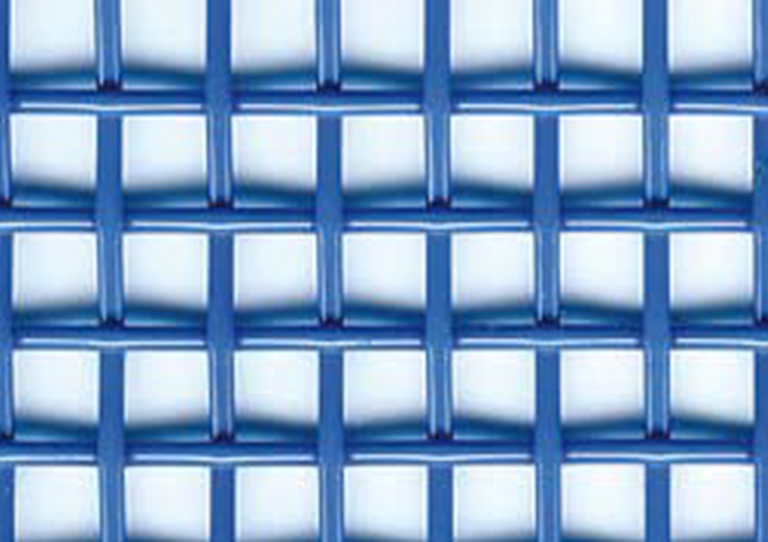

Ultrascreen 3000

• Velikost ok síťoviny 3000 μm
• Monofilament ze 100 % polyesteru
• Světle modrá barva
• Výstuhy PVC, Amtel TPE-E
• Propustnost vzduchu 6000 L/dm²/min při Δp=100 Pa
• Propustnost vody 700 až 2 060 mm/s*
• Otevřenost povrchu 30 až 60 %*
• Splňuje potravinářské standardy ES 1935/2004, FDA
• Vlastnosti pásu určují finální zhotovení
• K dispozici recyklovatelná verze

* V závislosti na velikosti ok sítoviny

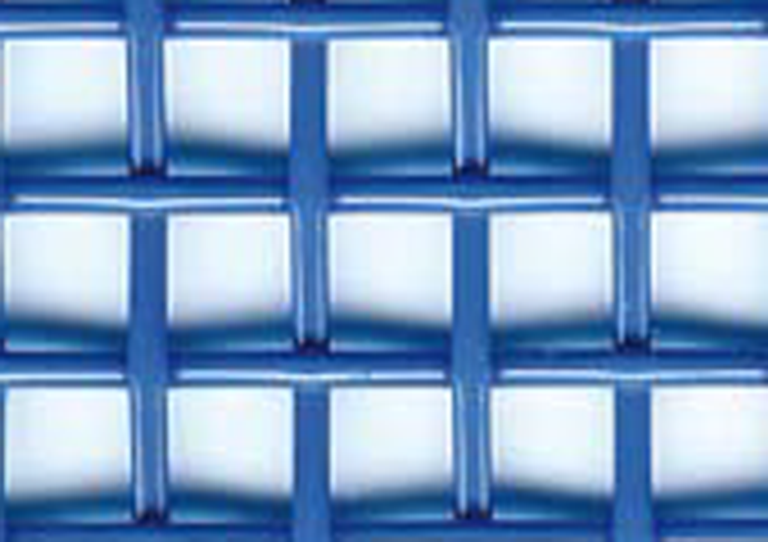

Ultrascreen 4000

• Velikost ok síťoviny 4000 μm
• Monofilament ze 100 % polyesteru
• Světle modrá barva
• Výstuhy PVC, Amtel TPE-E
• Propustnost vzduchu 6540 L/dm²/min při Δp=100 Pa
• Propustnost vody 700 až 2 060 mm/s*
• Otevřenost povrchu 30 až 60 %*
• Splňuje potravinářské standardy ES 1935/2004, FDA
• Vlastnosti pásu určují finální zhotovení
• K dispozici recyklovatelná verze

* V závislosti na velikosti ok sítoviny

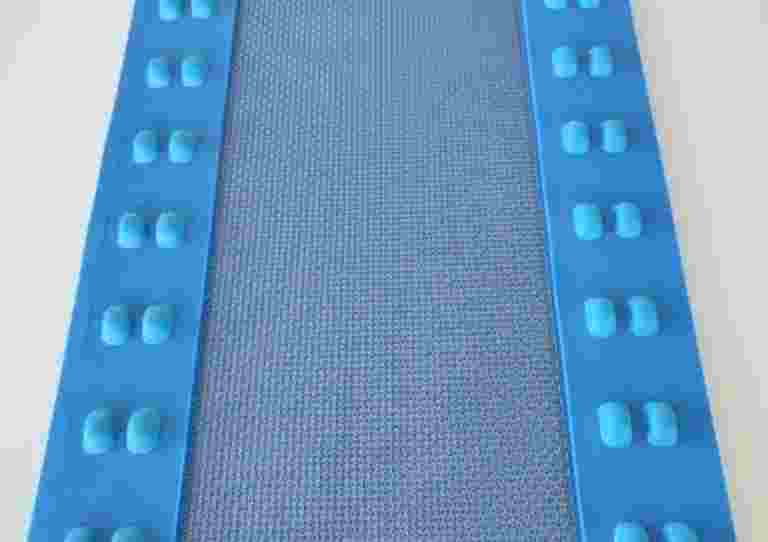

Ultrascreen PRO 1000

Ultrascreen PRO comes with a variety of different teeth and sprocket styles to fit your application. The positive drive system has the following benefits:

• Mesh opening 1000 μm
• The ultimate tracking performance
• Less tension applied to materials during assembly
• Reduced energy required to run your conveyor
• Plug & Play (no run-in time)
• Lower maintenance costs
• Lesser belt elongation
• Easy to clean and disinfect
• Excellent hygienic qualities, supports ISO 22000 requirements (previously HACCP)
• Reduced product contamination

The Ultrascreen PRO belts can be installed on new positive drive conveyors or as retrofits on friction-driven conveyors.

Ultrascreen PRO 2000

Ultrascreen PRO comes with a variety of different teeth and sprocket styles to fit your application. The positive drive system has the following benefits:

• Mesh opening 2000 μm
• The ultimate tracking performance
• Less tension applied to materials during assembly
• Reduced energy required to run your conveyor
• Plug & Play (no run-in time)
• Lower maintenance costs
• Lesser belt elongation
• Easy to clean and disinfect
• Excellent hygienic qualities, supports ISO 22000 requirements (previously HACCP)
• Reduced product contamination

The Ultrascreen PRO belts can be installed on new positive drive conveyors or as retrofits on friction-driven conveyors.

Ultrascreen PRO 3000

Ultrascreen PRO comes with a variety of different teeth and sprocket styles to fit your application. The positive drive system has the following benefits:

• Mesh opening 3000 μm
• The ultimate tracking performance
• Less tension applied to materials during assembly
• Reduced energy required to run your conveyor
• Plug & Play (no run-in time)
• Lower maintenance costs
• Lesser belt elongation
• Easy to clean and disinfect
• Excellent hygienic qualities, supports ISO 22000 requirements (previously HACCP)
• Reduced product contamination

The Ultrascreen PRO belts can be installed on new positive drive conveyors or as retrofits on friction-driven conveyors.

Ultrascreen XMD 1000

Every segment of the Food Industry runs the risk of foreign body contamination, with heavy consequences that include everything from disruptive claims affecting the brand reputation, all the way to very expensive product recalls. For those reasons, we have the Ultrascreen XMD edges available. The edges are X-ray and metal-detectable. Should the edges or cleats pollute your product, it will be picked up by your metal detector.

• Mesh opening 1000 μm
• 100% polyester monofilament
• Light blue colour (non-food colour)
• Stabilising strips PVC, Amtel TPE-E
• Air permeability 3640 L/dm²/min at Δp=100 Pa
• Water permeability 700 to 2060 mm/s*
• Open area 30 to 60%*
• Food standards EC1935/2004, FDA
• Belt properties determined by the properties of stabilising strips and accessories
• Recyclable version available

*Depending on mesh size

Ultrascreen XMD 2000

Every segment of the Food Industry runs the risk of foreign body contamination, with heavy consequences that include everything from disruptive claims affecting the brand reputation, all the way to very expensive product recalls. For those reasons, we have the Ultrascreen XMD edges available. The edges are X-ray and metal-detectable. Should the edges or cleats pollute your product, it will be picked up by your metal detector.

• Mesh opening 2000 μm
• 100% polyester monofilament
• Light blue colour (non-food colour)
• Stabilising strips PVC, Amtel TPE-E
• Air permeability 3640 L/dm²/min at Δp=100 Pa
• Water permeability 700 to 2060 mm/s*
• Open area 30 to 60%*
• Food standards EC1935/2004, FDA
• Belt properties determined by the properties of stabilising strips and accessories
• Recyclable version available

*Depending on mesh size

Ultrascreen XMD 3000

Every segment of the Food Industry runs the risk of foreign body contamination, with heavy consequences that include everything from disruptive claims affecting the brand reputation, all the way to very expensive product recalls. For those reasons, we have the Ultrascreen XMD edges available. The edges are X-ray and metal-detectable. Should the edges or cleats pollute your product, it will be picked up by your metal detector.

• Mesh opening 3000 μm
• 100% polyester monofilament
• Light blue colour (non-food colour)
• Stabilising strips PVC, Amtel TPE-E
• Air permeability 3640 L/dm²/min at Δp=100 Pa
• Water permeability 700 to 2060 mm/s*
• Open area 30 to 60%*
• Food standards EC1935/2004, FDA
• Belt properties determined by the properties of stabilising strips and accessories
• Recyclable version available

*Depending on mesh size
